Aluminum evaporation means more than just adding aluminum onto a surface; it has become an integral part of materials engineering and thin-film focusing. Whether for depositing an ultra-thin layer of metal on a substrate, for optical film coating, for semiconductor manufacturing, or for any other coating process, aluminum thermal evaporation offers a controlled and efficient method for applying ultra-thin metal layers on various substrates. This process not only demands precise control of temperature and vacuum, but also the use of high-purity raw materials. For instance, the quality and form of aluminum (pellets, slugs, wires, rods or blocks) directly influence film uniformity, deposition rate, and end-use performance.
In the following paragraphs, we will discuss the evaporation of aluminum and the reason why there is a strong emphasis on the term “high purity” in the context of raw materials, and how such raw materials are essential for maintaining the quality and functionality of the end products.
Principle of Aluminum Evaporation
Solid to gas transformation of aluminum is deviation of aluminum evaporation known as the principle of aluminum evaporation. Though it focuses as one form of physical vapor deposition, it is mainly classified as thermal evaporation. In the thermal evaporation process, aluminum solid is heated in a high vacuum chamber above 660℃, where it undergoes melting as well as vaporization. Once vaporization is done, the aluminum vapor formed is in the gas sate, then cooled down on a substrate where it forms a thin uniform film as it condensates.
There are two common methods of heating aluminum:
- The first is the use of Controlled e-beam evaporation which is deposition of material by a focused stream of electrons.
- The second is Electric boat heating where aluminum is placed in boats made of Tungsten.
Spend the vapor performance in a vacuum chamber performing at the range of 10-6 to 10-7 Torr induces formations of gas and allows deposition of aluminum thin to substrates with better accuracy as it lowers the level of contaminants. It is easier to evaporate aluminum because it melts at a lower temperature of 660℃ in addition its good bonding with most materials.
Aluminum evaporated is greatly sensitive to contamination especially by elemental impurities and oxygen. This is the main reason why electrode purity becomes a major factor in the quality of the resulting coating.
Raw Materials for Aluminum Evaporation: The Ultimate Pursuit of Purity
The quality of an aluminum thin film is inextricably linked to the purity of its raw material. For the highly focused world of high-tech manufacturing, the pursuit of purity in aluminum is a life-and-death pursuit. The starting material is burdened with vast implications for the working reliability of the deposited film, which is the reason why one of the most detrimental materials to use in the entire process is aluminum. High-purity aluminum evaporation is an absolute necessity.
Why “High Purity” is Non-Negotiable in the Aluminum Evaporation Process
The reasons for emphasizing “high purity” in aluminum that is to be evaporated are due to a number of very important reasons.
Minimizing Film Contamination: Foreign atoms that disrupt the aluminum structure, act as impurities of the raw film. Even in small amounts, the aluminum, when vaporized and deposited on the substrate, is contaminating. An example is highly integrated circuit systems. If an integrated circuit is designed with a layer of film surrounding it, added materials like copper and iron would more than likely be integrated with the aluminum layer, thus changing the film’s conductivity, lowering the cut-off frequency, and even increasing the leakage resistance, and suppressing, or in many cases, losing.
Optical applications on the other hand, would suffer more in the aspect of impurities. Adding materials to the layer of film designed for a highly efficient aluminum reflection surface, copper or iron would then be added on, would serve to the layer of copper or iron, thus degrading the layer tremendously. Iron and copper, under the influence of high temperatures, would scatter aggressively, reducing the absorption of embedded particles, thus more than likely degrading the overall reflective potential of the aluminum.
Ensuring Desired Film Properties: The functionality of thin aluminum films may depend on its certain properties including electrical, optical, or mechanical attributes. The use of high-purity aluminum will guarantee that the metal thin film portrays the fundamental characteristics of elemental aluminum. As an illustration, the fabrication of semiconductors involves the use of highly conductive aluminum interconnects whose impurity levels should be below a certain threshold in order to attain a targeted resistivity. Research has illustrated that within the semiconductors, a concentration of a few parts per million (ppm) of specific impurities can increase the resistivity of the film significantly.
Preventing Device Failure and Enhancing Reliability: In highly sensitive applications such as in microelectronics, or optical systems, the presence of impurities can cause premature failure of the device. Defects that arise due to certain impurities can cause the phenomenon of electromigration within integrated circuits, thereby decreasing the lifetime of the integrated circuits. Optical coatings that have been contaminated can also deteriorate when subjected to laser beams or environmental conditions. The use of high-purity aluminum allows the mitigation of these issues, and thereby improving the reliability and durability of the final product.
Ensuring Equipment Durability: Some impurities that are present in the raw materials may interact with, or corrode, components of the evaporation system such as the crucible, boat, or the electron beam gun. This can result in increased maintenance, and equates to a higher cost of operations, reduced lifespan of the equipment, and lower cost effectiveness. The use of high-purity materials allows coating deposition equipment to be better maintained which ensures its structural integrity as well as the components within it.
The industry standard specification of aluminum is between a purity of 99.99% (4N) and 99.999% (5N) or even 99.9999% (6N) for advanced semiconductors or specific optical coatings. Higher than 99.999 percent is reserved for grade N5, which is used for critical applications and is termed high-purity aluminum, which is symbolized as N grade. The table below shows the classification:
| Purity Grade | Common Notation | Impurity Level |
| 99.90% | 3N | 1000 ppm |
| 99.99% | 4N | 100 ppm |
| 100.00% | 5N | 10 ppm |
The requirement for aluminum purity in the devices of a given industry would range between 4N and 5N. This is the standard for other devices like semiconductors or optical coatings. By using 5N aluminum N5 grade pellets a 15% yield was achieved with a longer lifespan of the device compared to the 3N, which has lower oxygen contamination and better film uniformity.
Common Forms of Aluminum Raw Materials
Different forms of high-purity aluminum supplied by the relevant vendors are tailored for specific evaporation systems and applications necessities. For purposes of evaporators, deposition geometry, and the required deposition rate, various shapes are available for selection.
| Raw Material Form | Characteristics | The most common form for aluminum thermal evaporation using resistive boats/crucibles. Suitable for batch processes and automated feeding. |

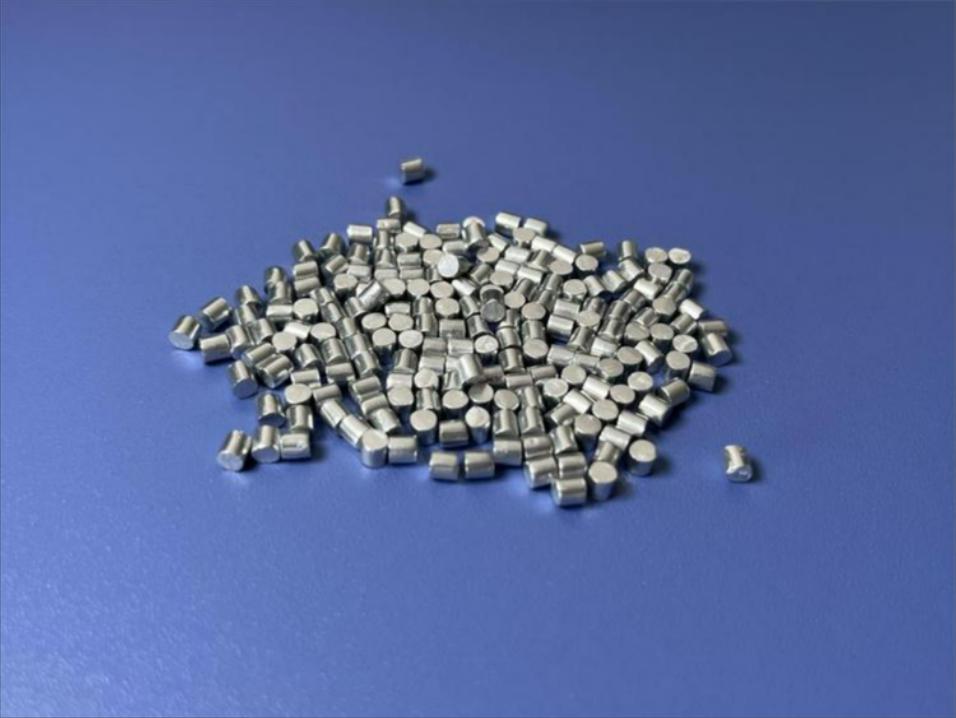

| Aluminum Pellets | Small, spherical or cylindrical pieces (typically 1-6 mm in diameter). Easy to handle and load into crucibles/boats. | The most common form of aluminum thermal evaporation using resistive boats/crucibles. Suitable for batch processes and automated feeding. |
| Aluminum Slugs | Larger, more compact pieces (e.g., 6-12 mm diameter or larger custom shapes). | Used in larger capacity boats or crucibles where higher volume per load is desired. Can also be suitable for electron beam evaporation sources. |

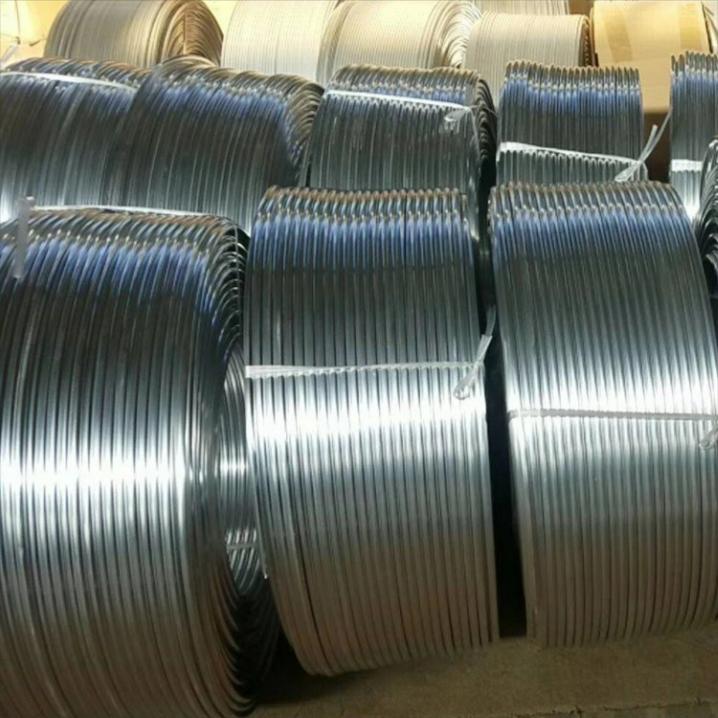

| Aluminum Wires | Thin, continuous strands (typically 0.5-3 mm diameter). | Ideal for continuous feed thermal evaporation systems where a constant replenishment of material is needed to maintain deposition rates. |
| Aluminum Rods | Solid cylindrical bars (e.g., 6-25 mm diameter or larger). | Primarily used as targets for electron beam evaporation where the rod is fed into the melt pool. Can also be cut into custom pieces. |
| Aluminum Blocks | Larger, irregular or rectangular blocks of aluminum. | Often used as a bulk source that is then cut or machined into smaller, more specific forms (pellets, slugs, or custom targets). |
Aluminum Pellets are much easier to load for thermal evaporators and aluminum systems in semiconductor fabs. Also, the aluminum pellets are lighter, ensuring maximum uniform deposition. On the other hand, aluminum rods or blocks are preferred in optical coating facilities and they are heavily used in high-power electron beam evaporators that need a constant and large material supply. Such selections are made based on the available process systems and the equipment needed for high economic efficiency.
Alternatives Factors for Consideration When Choosing Raw Materials
In addition to the fundamental issue of physical form and the consideration of purity, many other aspects determine what the raw materials for aluminum are that are the most suitable for evaporation.
- Focus on the Purity Level (as discussed above): This continues to be the foremost consideration. The level of purity should be suitable to the requirements of the end use of the application. Purity that is specified above what is needed will more often than not, incur excess cost, while purity that is specified below what is needed will more often than not, impair value and performance.
- Confirmation of the Material (Certificate of Analysis – CoA): As a matter of fact, CoA is a document that the respected suppliers issue and claim to contain details of the elemental composition of the materials along with the levels of impure materials. This document is vital for ensuring quality control and is a part of the complete project traceability system. For instance, a project that aims to achieve 5N purity, the CoA should indicate that the critical impurities of Fe, Si or Cu are below 10ppm.
- Treatment and Preservation (or Changes in State) of the Materials: Super high-purity materials chance a high risk of being contaminated as a result of the environmental conditions and handling. In the case of aluminum, the most suitable form to be stored in is either vacuum sealed or sealed in bags that maintain an inert atmosphere in order to hinder exposure to oxidation and the settling of particulates during the period of storage and transport. Proper protocols that are designed for cleanroom environments are necessary for the period before gently and carefully loading the materials into the evaporator.
- Supplier Reputation and Consistency: The supplier selected should be one who has been consistently delivering pure and quality materials. The quality of raw materials is uncertain, and may vary, leading to unintended variations, which need costly repairs. Such a supplier should ideally also offer technical and other support.
- Cost versus performance: High purity level comes with a price. The cost of achieving such a level is often outweighed by exceptional performance and trust in the final output, which translates to the lowered scrap disposal rates. The material cost should always be analyzed. Compromised film quality often leads to film quality loss. Within a microprocessor production environment, the cost of a high-purity Aluminum Rod is exceptionally lower than the amount of money that will be lost in a single contaminated microchip batch.
On the other hand, the output of aluminum blocks, rods, and wires, and pellets, as well as aluminum slugs should be of thin films. The excess evaporated aluminum should form the complex and precise intricate thin films, in accordance with the intended purposes of various aluminum evaporation applications.
Main Applications of Aluminum Evaporation
Aluminum thin films, deposited via aluminum evaporation, are crucial across numerous industries due to their versatile properties. The table below provides a concise overview of where and how these films are utilized
| Application Areas | How it’s Used | Benefits | Specific Examples |
| Electronics Industry | Conductive interconnects, electrodes, gate electrodes, passivation layers. | High electrical conductivity, ease of deposition, protects circuitry. | Integrated Circuits (CPUs, memory), OLED/LCD displays, Semiconductor devices. |
| Optical Devices | Mirror coatings, decorative finishes, anti-counterfeiting features. | Exceptional reflectivity (UV to IR), high light reflection, aesthetic appeal. | Telescopes (e.g., Hubble), scientific instruments, security labels, banknotes. |
| Packaging Industry | Metallized films on polymer substrates. | Enhanced barrier (moisture, oxygen, light), extended shelf life, fresh preservation. | Snack bags, coffee pouches, pharmaceutical blisters. |
| Solar Energy | Back contact and reflective layer in PV cells. | Optimizes light management, increases conversion efficiency by trapping light. | Thin-film photovoltaic cells. |
| Automotive Industry | Headlight reflectors, decorative trim. | Efficient light direction, provides metallic finish (aesthetics). | Headlights, interior/exterior vehicle trim. |
| General Decorative Coatings | Imparts metallic aesthetic, provides protective layering on various surfaces. | Metallic appearance, offers abrasion resistance and environmental protection. | Toys, appliance components, consumer electronics casings. |
Identifying the Best Supplier of Raw Materials
Identifying the supplier for the raw materials for aluminum evaporation is as important as understanding the technology as evaporating sources is. A reputable supplier is not a mere vendor, but a partner in the process of maintaining the thin-films deposition process balance in the evaporation sources deposition process balance, the evaporation balance, process quality, process consistency, process efficiency, and thin film deposition precise. Such a partnership has a direct bearing on the product yield, product reliability, and in the end the bottom line as well.
When assessing the potential suppliers for aluminum pellets, aluminum slugs, aluminum wires, aluminum rods, or aluminum blocks there are a number of important factors that need to be evaluated.
- Purity Assurance and Certification: The supplier’s commitment to the provision of high-purity materials is unquestionable. For every batch a potential supplier is evaluated, submits and defends a Document of Proof of Analysis (CoA) to show that the materials fit within the precise frameworks set. Such materials may include bound-less impurities of sets of 99.999. A supplier is likely to employ cutting-edge QC procedures and control systems as counters including GDMS and ICP-MS, i.e., among the Document of Proof Analysis techniques.
- Consistency and Batch-to-Batch Uniformity. Quality differences in materials during different phases can result in unpredictable rates of deposition, unpredictable properties of a film, and increasing downtimes as a result of needing adjustment. Superior suppliers will keep tight control of processes in manufacturing downtimes to ensure uniformity between different batches. If possible, ask about their process control and SPC data.
- Packaging and Handling Expertise. High-purity aluminum is highly reactive and can undergo oxidation as well as contamination with dust and moisture. A proper supplier will understand the need to protect the material during transport and storage by vacuum sealing the material into argon backfilled bags and clean room packing to avoid degradation, ensuring that the material is in the best possible state to be used in your aluminum steam evaporator.
- Range of Forms and Customization Capabilities. An aluminum supplier that offers a broad range of evaporation sources and process requirements is versatile, and able to support its customers. It is also relevant to ask for specific custom measurements and shapes that may be needed for specific applications, as the evaporation source and process requirements may vary.
- Provider of Additional Services: To some degree, all suppliers bring to the table more than their share of the materials. They, too, supply technical support and knowledge. This can involve the more complex stages of material selection for specific technical applications, troubleshooting deposition problems, and the optimal handling and storage of materials as some of the more complex stages of development and production. Embedding a metallurgist or a material scientist in the organization tends to cross this bridge.
- Reliability and Lead Times: Assess the supplier’s past performance with respect to their ability to deliver orders within the requested lead time and the level of stock that is routinely maintained for the requested products. Any lag in the supply of materials pauses the production line and this, in turn, can lead to a heavy loss. Understand their lead times for standard products as well as their capacity to fulfill urgent requests or substantial orders.
- Value for Money: Value is not the price paid. Cost is widely regarded as a factor, whose relevance in this scenario is to be very carefully measured. It is common that a more expensive item is more affordable in the long run for the very reason that scrappage, yield, and downtime are more manageable.
Achieving this focus enables manufacturers to develop beneficial relationships with primary suppliers, which in turn helps to streamline the primary steps involved in the aluminum evaporation process. Such planning helps assure the parts’ reliability and overall finish, and helps maintain cost-effective measures to the overall project. CHAL would be pleased to assist with the primary aluminum material supply.
